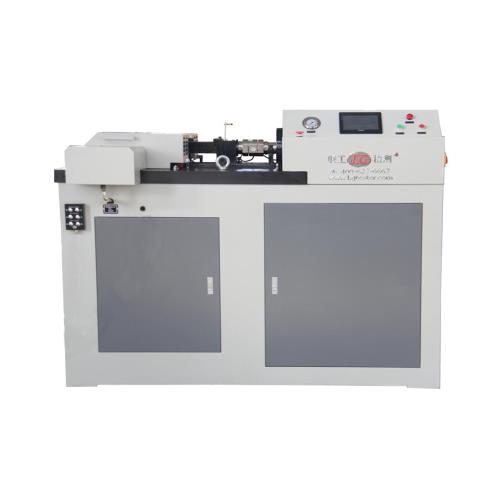

GW-Y Steel Bending Testing Machine
1, Brief introduction
GW-Y Steel bar bending testing machine is the latest bending test machine developed by our company. It is suitable for bending test of metal bars and construction rebars to determine the ability of metal materials to resist bending deformation. It also can carry out the metal pipe bending performance after equipping the pipe bending fixture. This machine is an ideal testing equipment for metallurgical enterprises, building quality inspection departments, municipal inspection departments and product quality inspection stations at all levels. It is also suitable for colleges and universities to conduct demonstration experiments for students.
2, Technical indicators
Model | GW-40Y | GW-50Y |
Round sample diameter range | Φ6~Φ40mm | Φ6~Φ50mm |
(Positive and negative) bending angle | 0-180 degrees | 0-180 degrees |
Sheet sample thickness range | 6-25mm | 6-35mm |
Support roller spacing | 30-400mm | 30-600mm |
Support roller diameter | Φ30mm | Φ50mm |
Bending core displacement resolution | 0.01mm | 0.01mm |
Bending core accuracy | level 1 | level 1 |
Power supply | 380V, 50Hz, about 2kW | 380V, 50Hz, about 3kW |
