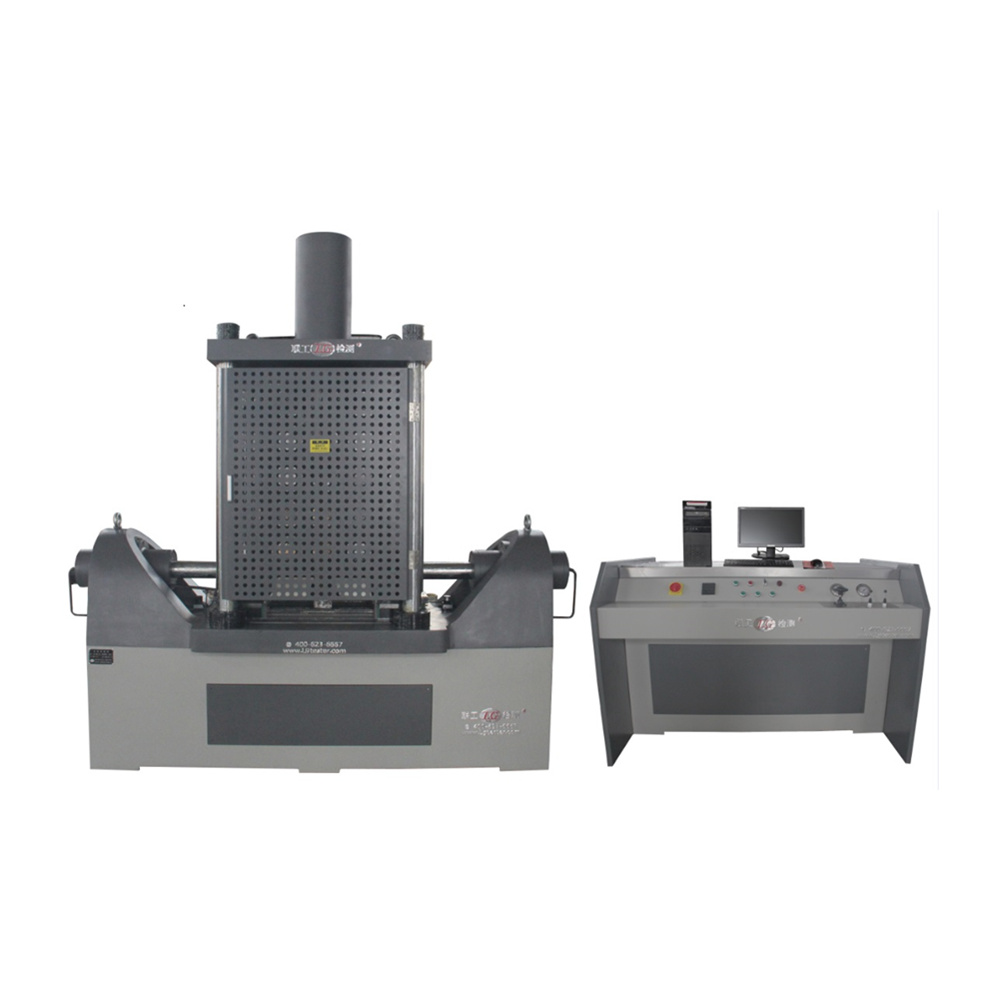

YGBW-1000A Computer Control Hydraulic Plate Bending Testing Machine

1, Usage

The 1000kN hydraulic bending tester mainly tests the three-point bending mechanical properties of various metal plates and bars at normal temperature. The test machine integrates machine, electric, hydraulic and automatic control technologies, and has the characteristics of mature technology, advanced and reliable. It can reach the international advanced level; the main parts have a good service life; the equipment is easy to maintain and repair, and the consumable parts can be quickly replaced.

2, Standard technical parameters

1, Maximum bending force: 1000kN

2, Cylinder maximum load: Vertical: 1000kN Horizontal: 2 * 500kN

3, Cylinder piston stroke: Vertical: 400mm Horizontal: 2 * 220mm

4, Cylinder compression speed: Vertical: 200mm / min Horizontal: 200mm / min

5, Bend angle control: 0-180°

6, Compressive space: 650mm

7, Bending roll

spacing: 400mm

length: 200mm

width: 180mm

height: 200mm

8, Bending indenter width: 60mm

9, Horizontal cylinder synchronization accuracy: ± 2%

10, Displacement speed relative error: ≤5%

11, Measurement accuracy: vertical test force 1% displacement accuracy ± 0.5%

12, Operating noise: No more than 70dB

13, Maximum working pressure: 31.5MPa

14, Bend core diameter: Φ 10- Φ 280mm (for user to choose the configuration)

15, Plate thickness: 6-50 mm

16, Total motor power: 7kW

17, Dimensions: Host: 2400*900*2500mm

Oil source: 1120*600*850mm (L * W * H)

18, Weight: About 4500kG
