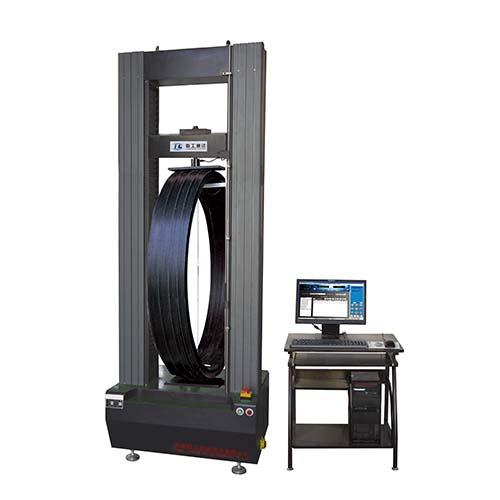

CMT-H series Pipe Ring Stiffness Testing Machine
Application:
This machine is used for determination circular cross section stiffness of plastic and composite pipe, equipment with a special ring stiffness deformation measuring device, so that the deformation measurement results is more accurate. It is the ideal test and measuring instrument for municipal, quality inspection, chemical and plastic pipe production enterprises.
Techncal parameters:
Specification（kN） | 30~100 |
Accuracy class | 0.5 class |
Test space（mm） | according to customers' request |
Displacement resolution（μm） | 0.04 |
Effective test width（mm） | according to customers' request |
Test speed adjusting range | 0.001~500mm/min |
Pipe inner diameter measurement range（mm） | 50~200/200~2000 |
Pipe inner diameter measurement accuracy | ±1% |
Pipe inner diameter measurement resolution（mm） | 0.01 |
