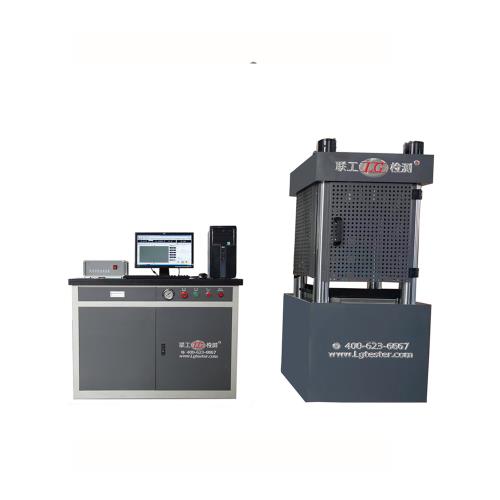

YAW series Automatic Compression Testing Machine
1. Usage and Characteristics
This machine equip with conputer,mainly used for the compressive strength test to brick, stone, cement, concrete materials, which can also be used to other materials compressive performance tests.
2. Technical parameters
Max. Test Force | 2000kN |
Test force Measurement Range kN | 4%-100%FS |
Test Force Indicating Error | ≤indicating value±1% |
Test Force Resolution | 0.01kN |
Hydraulic Pump Pressure Pressure Rated | 25MPa |
Upper Pressure Plate Size | Φ290mm |
Lower Pressure Plate Size | 265*265mm |
Column distance | 365mm |
Maximum distance between upper and lower pressure plates | 250mm |
Piston Diameter | φ320mm |
Piston Stroke | 100mm |
Host weight | About 1150kg |
