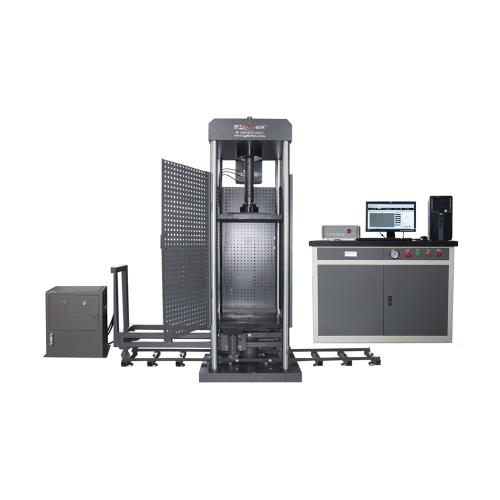

YAW-300S Automatic Exhaust Duct Compression Testing Machine
Application
This testing machine is mainly used for the test of pressive strength of duct finished products, which is applied to the standard for the JG/T194-2006.
Main technical specifications
1. Max. Test force: 300kN
2. Test force measuring range: 4%-100%FS
3. Test force value relative error: ≤±1%
4. Test force resolution: 0.01kN
5. Hydraulic pump rated pressure: 25MPa
6. Upper and lower compression plate size: 700*600mm
7. Max. Distance between upper and lower compression plate: 1550mm
8. Compression plate hardness: ≥HRC40
9. Piston diameter: φ130mm
10. Piston stroke: 100mm
11. Lifting motor: 0.75 KW
12. Oil pump motor: 1.5 KW
13. Protective device: Metal protective net
14. Host dimension(L*W*H): 1150*950*3000mm
15. Host weight: about 2000kg
