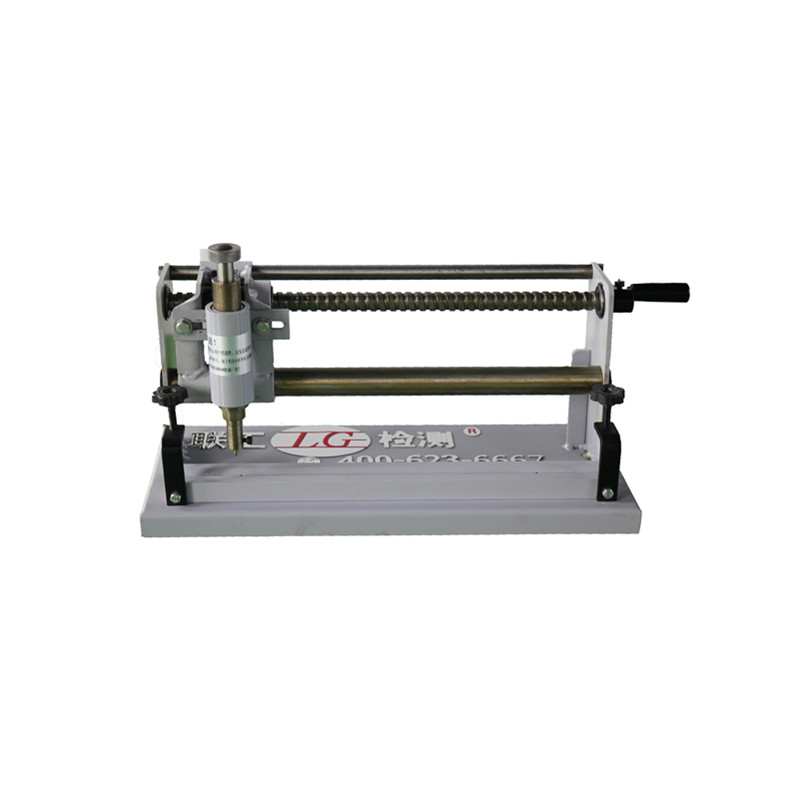

Manual Tensile Specimen Gauge Length Meter

1. Overview
DX-5 manual tensile specimen gauge length meter is designed and manufactured according to the requirements of the laboratory. This machine can be used for rebar and ordinary steel bars. It has the advantages of compact structure, convenient and flexible use, and accuracy. It is an indispensable instrument in the laboratory.

2. Main technical parameters:
2.1 Control methods: Manual
2.2 Max. gauge length: 300mm
2.3 Point space: 5mm or 10mm (adjustable)
2.4 Striking point each time: 1
2.5 Points depth: 0.3mm
2.6 Outline size (L*W*H): 500*300*250mm
2.7 Weight: 22Kg
2.8 characteristics: the adjustable point space, easy and convenient operation
