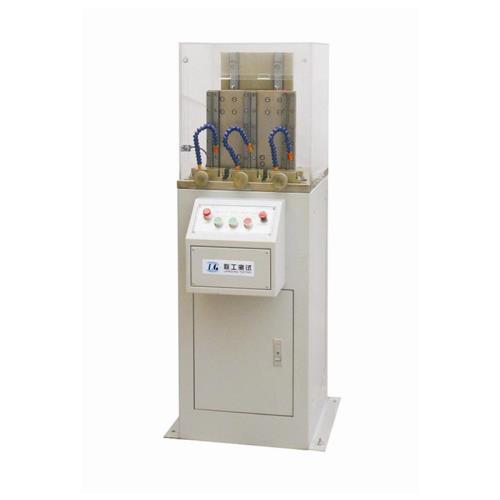

CSL-B-3 Impact Specimen Gap Electrical Broaching Machine (Three Knives)
Usage and characteristics
Impact Sample Gap Broaching Machine is the only instrument for processing the qualified charpy impact sample gap, except the optical curve grinding machine. Because of once processing theory, the gap identity is very nice.
Technical Parameters
| Model | CSL-B |
| Specimen gap shape | V-or U-(2mm) |
| Processing the Specimen size | 10*10(7.5 or 5)*55mm |
| Drive mode | High precision ball screw drive |
| Cutting mode | Electric control |
| Broach stroke | 350mm |
| Broach Materials | W18Cr4V |
| Cutting speed | 2.3m/min |
| Power | 3-phase 4-wire 380V 50Hz 0.9KW Main motor 0.75KW |
| Dimensions (mm) | 350*570*1250mm |
| Weight | 180Kg |
