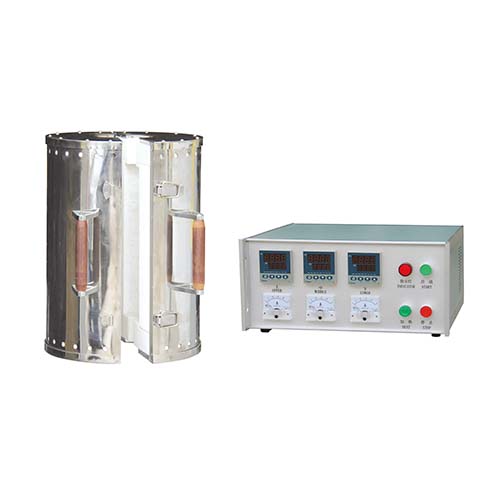

WGW Series High Temperature Furnace for Tensile Test

1. Three sections temperature control design
2. Temperature Range: 200～900℃
3. Temperature Accuracy: according to HB5195-96B standard amassments.
4. Soaking Zone Length: Isothermal section 150mm
5. Inner size:Φ90×300mm can be customized on user’s requirements
6. Temperature Control Mode: Direct-type (Thermocouple tied with specimen) or indirect type (Thermocouple from furnace side entry)
7. Power:3Kw
8. Temperature fluctuation
                      ≤600℃         ±2℃，
                       600～900℃    ±3℃，
9. Temperature Gradient:
                       ≤600℃        2℃，
                       600～900℃    3℃，
10. Temperature Measuring Instrument Accuracy: No less than 0.3 Class
