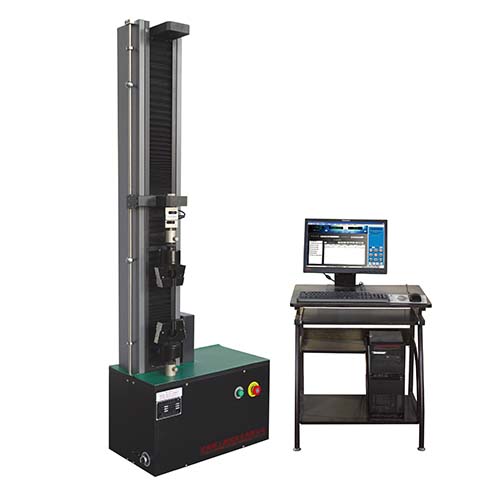

CMT-L Single Column Computer Control Electronic Universal Testing Machine

CMT series single column electronic universal testing machine is used for metal and nonmetal(including composite materials) tensile,compression,bending,shear,striping,tear,load,relaxation,reciprocating and other static mechanical property test and analytical investigation, which can calculate the test parameters automatically like ReH,ReL,Rp0.2,Fm,Rt0.5,Rt0.6,Rt0.65,Rt0.7,Rm,E and so on, and can test and provide data according to GB,ISO,DIN,ASTM,JIS and other international standard.

Main technical parameters

Measurement Parameters
Maximum test force	0.1/ 0.2/ 0.5/ 1/ 2/ 5kN (can add sensors to extend the force range)
Accuracy class	0.5
Measuring range of test force	0.2%~100%FS (full scale)
Indicating error of test force	Within ±0.5% of indicating value
Resolution of test force	±1/300000 of maximum test force, grade unchanged and resolution unchanged in whole process
Measuring range of deformation	0.2%~100%FS
Indicating error of deformation	Within ±0.5% of indicating value
Resolution of deformation	1/300000 of maximum deformation
Indicating error of displacement	Within ±0.5% of indicating value
Resolution of displacement	0.025μm

Effective distance of tension	900mm (can be custom-made according to user’s requirements)
Removable distance of beam	1100mm
Size of host (length x width x height)	(6303401730)mm
Weight of host	About 150Kg
Power supply	Single phase,220V, 50Hz ,0.75kW
