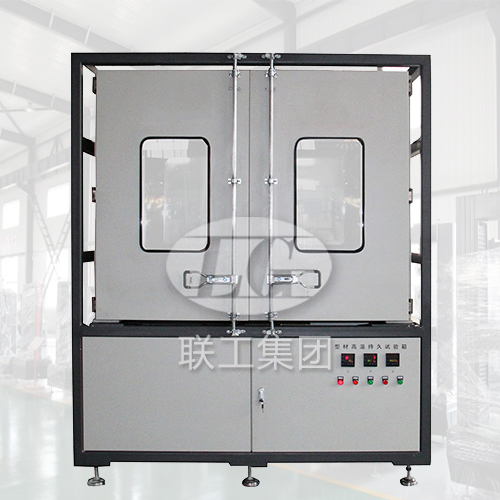

GWCJ-60 High Temperature endurance test machine
GWCJ-60 High Temperature endurance test machine
GWCJ-60 high temperature endurance test machine is used to test GB / T28289-2012 its compulsory verification project "high temperature endurance load test of heat insulation profile". Six strings of samples can be made at the same time, ranging from 10-25 pieces per string according to the size of the sample, and the maximum load is 6KN.
Technical Parameters
1. Temperature range: 0 ℃ ~ 100 ℃
2. Instrument accuracy: 0.3%
3. Temperature deviation: ± 2 ℃
4. Temperature gradient: ≤ ± 1.5 ℃
5. Temperature fluctuation: less than ± 1 ℃
6. Heating rate: 1 ℃ ~ 3 ℃
7. can make samples: 6 groups
8. Working power: three-phase five-wire, 380V, 50Hz 7kW
9. Equipped with lighting and observation window
