A complete list of specifications and models for pendulum impact testing machine, where you can find higher quality impact testing machines

The pendulum impact testing machine is mainly used to measure the resistance of materials to impact under dynamic loads, in order to determine the quality condition of materials under dynamic loads. The Liangong pendulum impact testing machine is divided into: fully automatic impact testing machine and semi-automatic impact testing machine. The fully automatic impact testing machine is divided into room temperature impact and low-temperature impact according to customer testing requirements, meeting national standards such as GB/T229 and GB/T3808, as well as ASTM, EN, ISO American, European, and international standards.

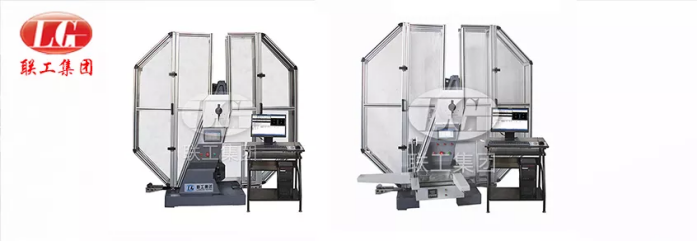

1. High End Pendulum Impact Testing Machine

This series of metal pendulum impact testing machines has impact energies of 150J, 300J, 450J, 600J, and 750J. With a double support structure, it has higher stability and three energy display modes. The results can be compared with each other, effectively eliminating possible problems. It also has a fully enclosed safety net and a sample recovery device, which can take the sample out of the testing machine after impact, improving work efficiency while ensuring the safety of the testing personnel.

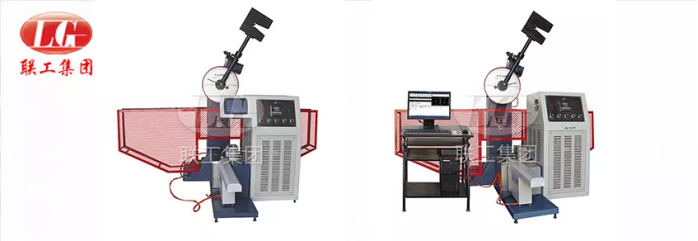

2. Low Temperature Fully Automatic Impact Testing Machine

JBD-300S/500S Digital Low Temperature Fully Automatic Impact Testing Machine

JBD-300W/500W Computer Control Low Temperature Fully Automatic Impact Testing Machine

This series of low-temperature fully automatic impact testing machines from Liangong adopts a high torque clutch and a high-power motor, which can make the equipment more stable and vibration free when taking and releasing the pendulum. The temperature control accuracy is high, and the low-temperature range can be selected according to the customer's temperature requirements.

3. Ultra Low Temperature Fully Automatic Impact Testing Machine

JBDS-300C/500C Digital ultra-low temperature fully automatic impact testing machine

JBDW-300C/500C Computer control ultra-low temperature fully automatic impact testing machine

This series of ultra-low temperature fully automatic impact testing machines from Liangong adopts a high torque clutch and a high-power motor, ensuring smooth and vibration free operation of the equipment during taking and releasing the pendulum; The low temperature range can be customized according to the customer's temperature requirements. The lowest temperature can reach minus 196 Celsius degrees (-196 ℃). There are two types of refrigeration methods: compressor refrigeration and liquid nitrogen refrigeration.

4. Room Temperature Fully Automatic Impact Testing Machine

JBS-300Z/500Z Digital Display Room Temperature Fully Automatic Impact Testing Machine

JBW-300Z/500Z Computer Control Room Temperature Fully Automatic Impact Testing Machine

The above three types of fully automatic impact testing machines adopt PLC automatic control or computer control, with high stability and strong anti-interference ability. When conducting low-temperature impact testing, the sample reaches the set temperature and is sent to the feeding mechanism using pneumatic sample delivery. The sample is accurately delivered to the impact position through end face positioning technology (patented technology of Liangong), which not only reduces the trouble of aligning the sample once, but also improves work efficiency and test accuracy, and the entire impact process is less than 4 seconds.

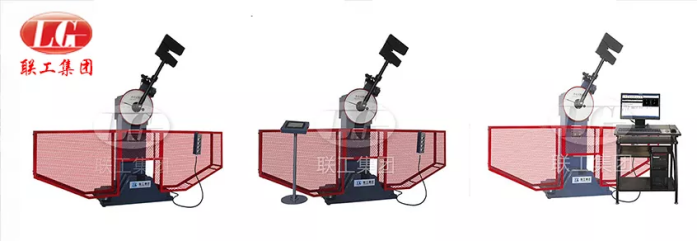

5. Pendulum Semi-Automatic Impact Testing Machine

JB-300B/500B Semi-Automatic Impact Testing Machine

JB-300S/500S Digital Semi-Automatic Impact Testing Machine

JB-300W/500W Computer Control Semi-Automatic Impact Testing Machine

This series of impact testing machines also uses a high torque clutch and a high-power motor, making the equipment more stable and vibration free when taking and releasing the pendulum. After breaking the sample, the remaining energy is used to automatically swing and prepare for the next impact test. When the test volume is not very large and the budget is limited, this series of equipment can be selected.

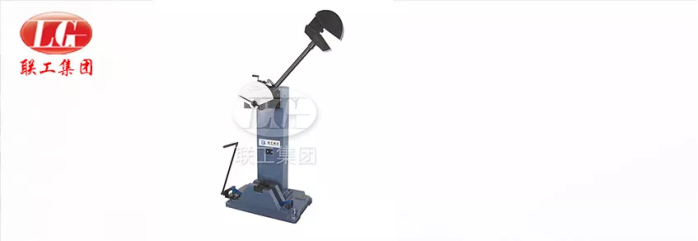

6. Manual Impact Testing Machine

The JB-300 manual impact testing machine is operated manually and does not require a power supply. It is suitable for teaching units or schools with small test volumes. The maximum impact energy is 300J. The Liangong series impact testing machine adopts a new type of brake band and is equipped with a manual braking mechanism. Compared with other manual impact testing machines, the brake band operation is simpler, the braking is smooth, and it is easy to replace.

7. Izod Impact Testing Machine

JBN-300 Izod Impact Testing Machine

Meet the testing standard ISO R84 "Izod impact test for steel"; B S131 and GB/T4158 "Metallic Izod Impact Test Method".

8. Small Energy Impact Testing Machine

The small energy impact testing machine is divided into charpy impact testing machine, Izod impact testing machine, and Charpy-Izod combination impact testing machine: used to determine the impact toughness of non-metallic materials such as plastics, reinforced nylon, fiberglass, ceramics, cast stone, plastic appliances, insulation materials, etc. The impact methods are divided into charpy impact and Izod impact. The pendulum energies are 1J/5J/7.5J/15J/25J/50J and 5.5J/11J/22J, respectively.
